Making Maps with PopGenHelpR

Source: vignettes/articles/PopGenHelpR_MakingMaps.Rmd
PopGenHelpR_MakingMaps.Rmd

Purpose

This document contains code to demonstrate how to use PopGenHelpR to create maps. The examples provdied are not comprehensive, but they should give you a solid foundation. Please reach out if you have any questions or need any help.

How do maps work in PopGenHelpR?

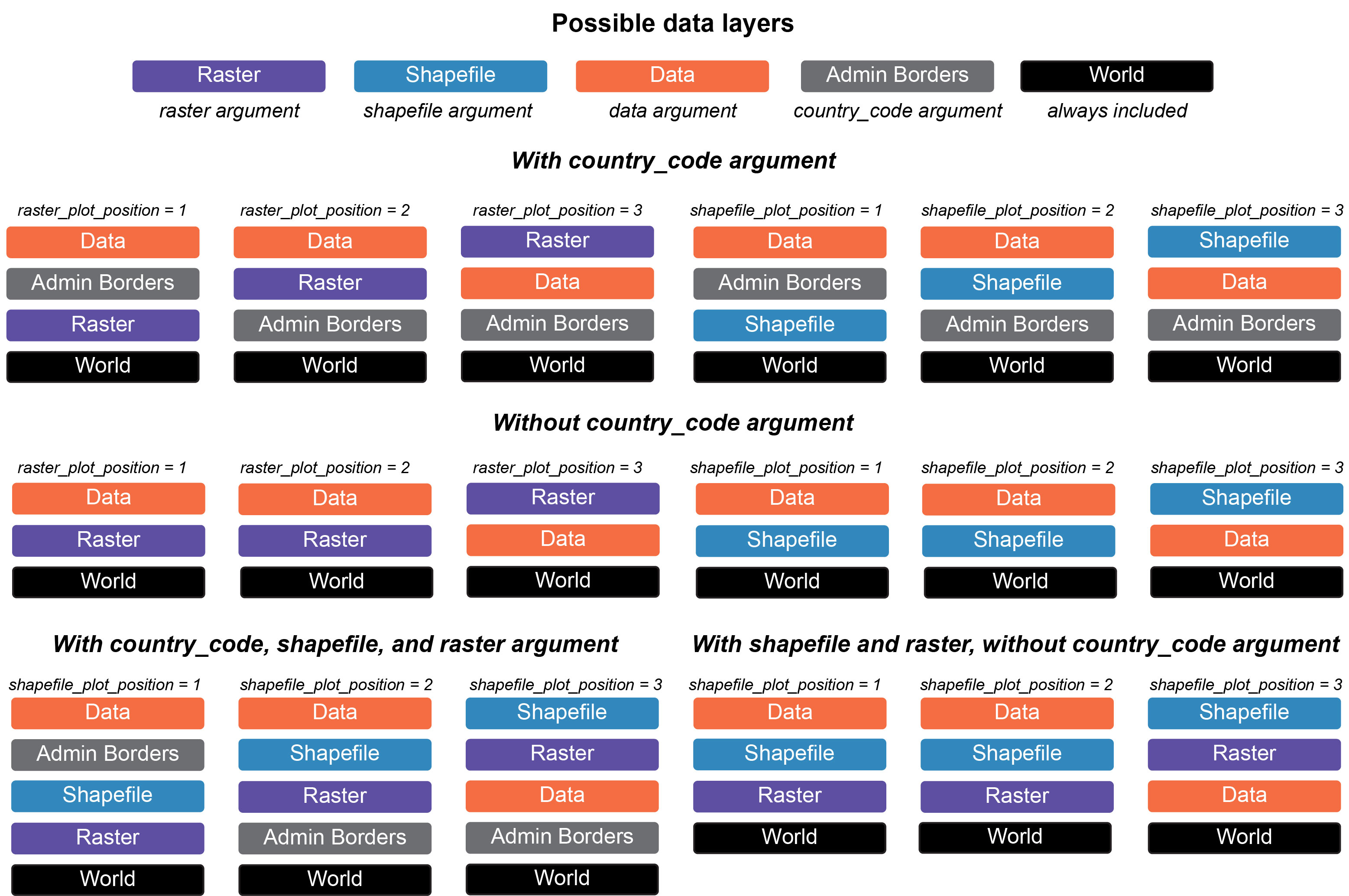

Maps in PopGenHelpR are built using [ggplot2](https://ggplot2.tidyverse.org/), [terra](https://rspatial.github.io/terra/), [sf](https://cran.r-project.org/web/packages/sf/index.html), [geodata](https://cran.r-project.org/web/packages/geodata/index.html), and [ggspatial](https://paleolimbot.github.io/ggspatial/). PopGenHelpR uses these packages to build maps in layers, that are stacked on top of each other to create our final maps. Without shapefiles and rasters, PopGenHelpR will just plot your data (i.e., coordinates, piecharts) on top of a basemap, which may or may not include administrative borders (i.e., states). Then, when users add shapefiles or a raster (shapefile and raster arguments, respectively) we can manipulate the relationship of those layers using the shapefile_plot_position and raster_plot_position arguments. We have created a visualization to help users understand the plot_position arguments in different scenarios (see figure below).

Conveniently, users can include any administrative borders in the geodata package using the country_code argument. This expands the utility of PopGenHelpR by providing data for the entire world, not just the United States of America. Users can also add a scale bar and north arrow (you can change the style, see below). Altogether, this allows users to create publication quality maps without the need for expensive liscences or subscriptions.

Notes on PopGenHelpR maps

There are a few things to be aware of with PopGenHelpR’s mapping functions.

  1. You will get an inaccurate scale warning. This is expected because we are using unprojected data. If this causes serious concern please email us for help. We do not provide support for projecting data because projection can cause R to crash and can be done in terra.
  2. Your raster may be recognized as discrete or continous when it is not. This error comes from terra, we provide the discrete_raster argument to accommodate this. Just set it to TRUE or FALSE.
  3. The Piechart_map function does not support rasters. This is because ggplot2 can only take one scale_fill per plot. With a raster, we would need two scale_fills. This is also why there is no outline on the Point_map plots that include a raster.

Let’s make a few maps!

Load data and packages


# Install developmental PopGenHelpR if needed
devtools::install_github("kfarleigh/PopGenHelpR")
#> Using github PAT from envvar GITHUB_PAT. Use `gitcreds::gitcreds_set()` and unset GITHUB_PAT in .Renviron (or elsewhere) if you want to use the more secure git credential store instead.
#> Skipping install of 'PopGenHelpR' from a github remote, the SHA1 (060c9901) has not changed since last install.
#>   Use `force = TRUE` to force installation

base::system("R --no-save")

library(PopGenHelpR)
library(cowplot)
library(magrittr)

# Data

Q_dat <- PopGenHelpR::Q_dat
Pop_dat <- PopGenHelpR::HornedLizard_Pop
Fst_dat <- PopGenHelpR::Fst_dat
Het_dat <- PopGenHelpR::Het_dat

# Isolate the q-matrix and population information, create Pop_mix to show it works with a mixture of character and numerics.
Qmat <- Q_dat[[1]]
Pops <- Q_dat[[2]]

# Spatial data
shapefiles <-  system.file("extdata", package = "PopGenHelpR") |> list.files(pattern = "*.shp$", full.names = T)

# Remove the viridis shapefile
shapefiles <- shapefiles[1:8]

# Get elevation data
raster <- geodata::elevation_global(path = tempdir(), res = 5)

# Get temperature data
temp_ras <- geodata::worldclim_global("tavg", path = tempdir(), res = 5)

Piechart_map with shapefiles

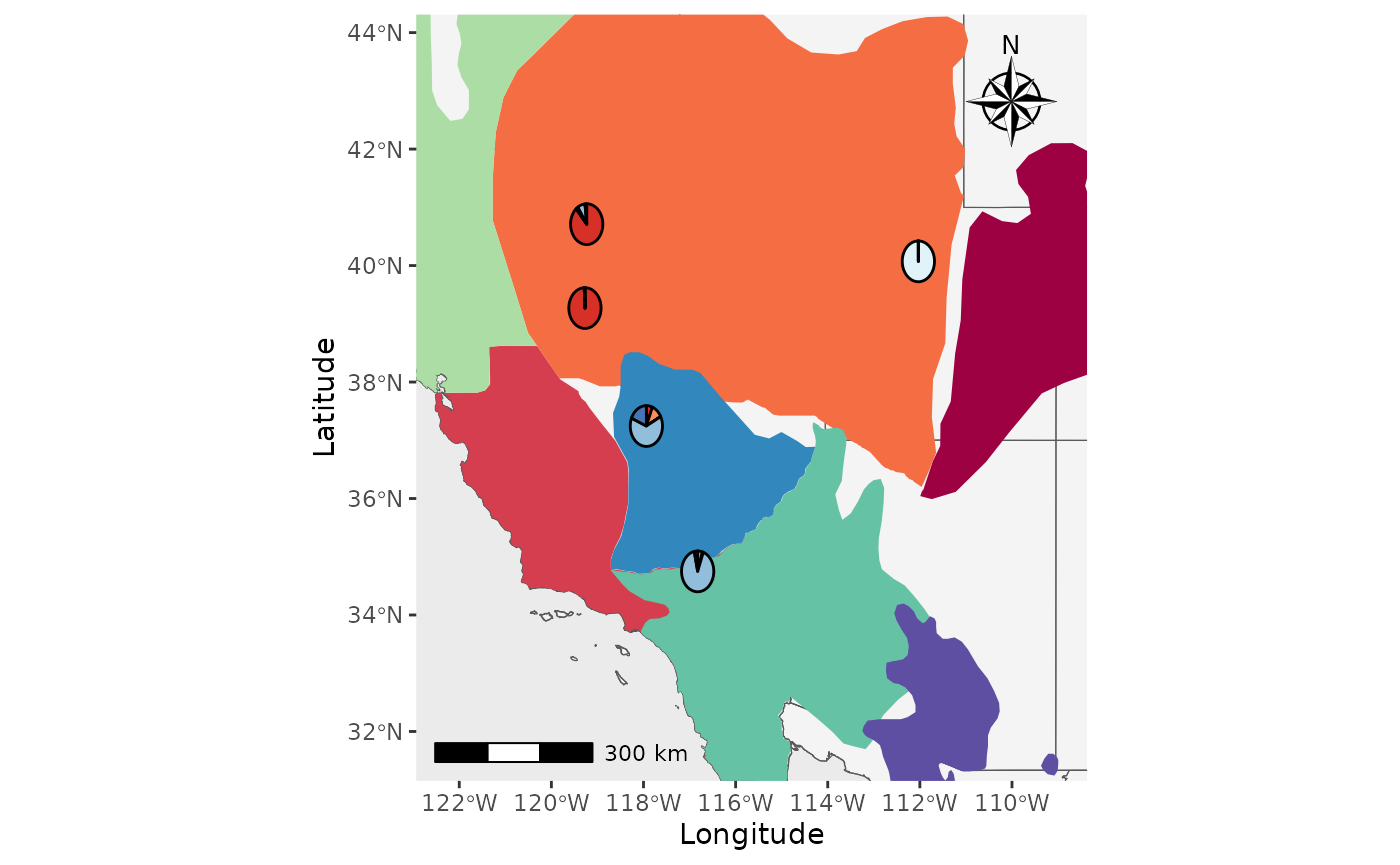

First, let’s make a piechart map with shapefiles.

Shap2_piemap <- Piechart_map(anc.mat = Qmat, pops = Pops, K = 5, col = c('#d73027', '#fc8d59', '#e0f3f8', '#91bfdb', '#4575b4'), plot.type = "all", Lat_buffer = 3, Long_buffer = 3, country_code = c("usa", "can", "mex"), shapefile = shapefiles, shapefile_col = c('#9e0142','#d53e4f','#f46d43','#fdae61','#abdda4','#66c2a5','#3288bd','#5e4fa2'), shapefile_plot_position = 2,north_arrow = T, scale_bar = T, north_arrow_position = "tr")

Shap2_piemap$Population_piemap
#> Scale on map varies by more than 10%, scale bar may be inaccurate

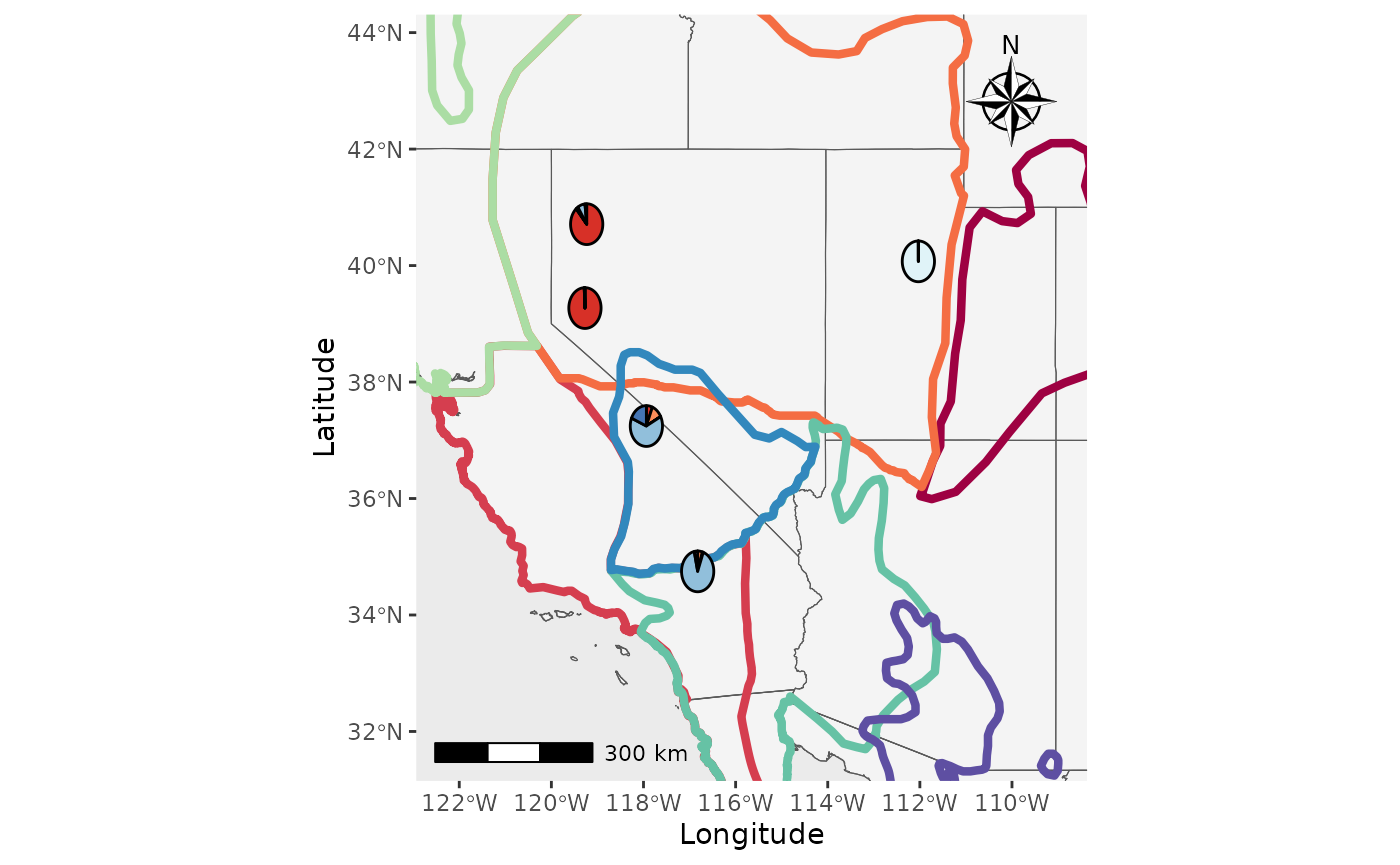

That’s great, but what about if we want the shapefiles to be transparent and outlined with the colors? We will set the shapefile_col = NA, use the colors in shapefile_outline_col, and set the shp_outwidth=1.5.

Shap2_piemap_out <- Piechart_map(anc.mat = Qmat, pops = Pops, K = 5, col = c('#d73027', '#fc8d59', '#e0f3f8', '#91bfdb', '#4575b4'), plot.type = "all", Lat_buffer = 3, Long_buffer = 3, country_code = c("usa", "can", "mex"), shapefile = shapefiles, shapefile_col = NA, shapefile_outline_col =  c('#9e0142','#d53e4f','#f46d43','#fdae61','#abdda4','#66c2a5','#3288bd','#5e4fa2'), shapefile_plot_position = 2,north_arrow = T, scale_bar = T, north_arrow_position = "tr", shp_outwidt = 1.5)

Shap2_piemap_out$Population_piemap
#> Scale on map varies by more than 10%, scale bar may be inaccurate

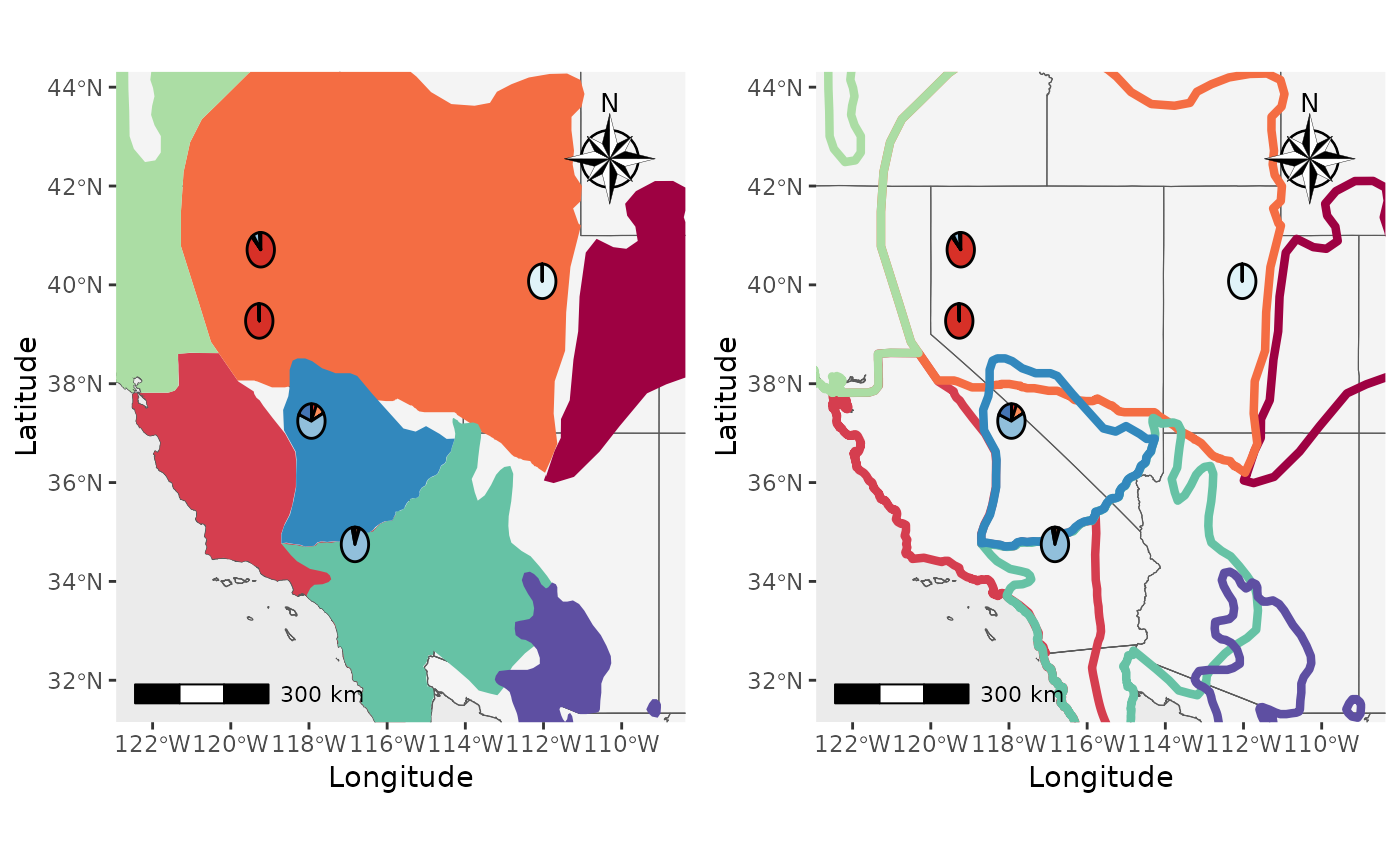

Nice, now let’s compare them to see how they are different. We will use the plot_grid function from cowplot.


plot_grid(Shap2_piemap$Population_piemap, Shap2_piemap_out$Population_piemap, nrow = 1)
#> Scale on map varies by more than 10%, scale bar may be inaccurate
#> Scale on map varies by more than 10%, scale bar may be inaccurate

Plot_coordinates with raster

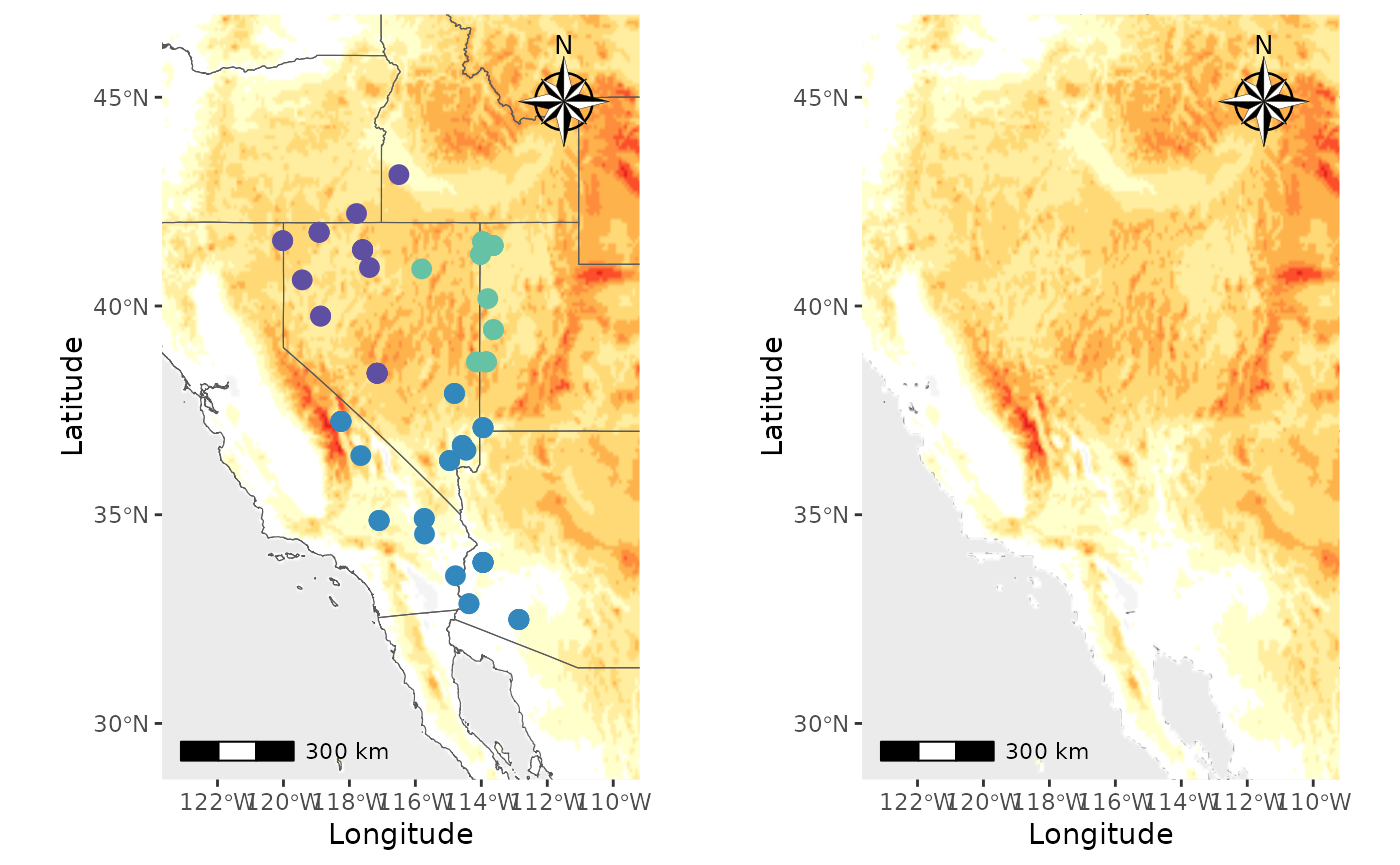

Well, what about rasters? Or both rasters and shapfiles? Let’s make a couple of maps. We will create a map with points on top of a raster, a raster on top of everything to demonstrate the raster_plot_position argument, and a plot with shapfiles and rasters to show you how the shapefile_plot_position and raster_plot_position behave together. **Hint, you can plot rasters and shapefiles on top of everything else to create a map with only those layers.

We will use elevation data from the geodata package as our raster.


PC_ras1 <- Plot_coordinates(Pop_dat, Longitude_col = 3, Latitude_col = 4, group = Pop_dat$Population, group_col = c('#66c2a5','#3288bd','#5e4fa2'), country_code = c("usa", "mex", "can"), raster = raster, raster_plot_position = 1, interpolate_raster = TRUE, Lat_buffer = 3, Long_buffer = 3, discrete_raster = TRUE,
raster_col = c('white','#ffffcc','#ffeda0','#fed976','#feb24c','#fd8d3c','#fc4e2a','#e31a1c','#bd0026','#800026'), raster_breaks = c(0,500,1000,1500,2000,2500,3000,3500,4000,5000), legend_pos = "none", scale_bar = TRUE, north_arrow_position = "tr", north_arrow = TRUE)

PC_ras3 <- Plot_coordinates(Pop_dat, Longitude_col = 3, Latitude_col = 4, group = Pop_dat$Population, group_col = c('#66c2a5','#3288bd','#5e4fa2'), country_code = c("usa", "mex", "can"), raster = raster, raster_plot_position = 3, interpolate_raster = TRUE, Lat_buffer = 3, Long_buffer = 3, discrete_raster = TRUE,
raster_col = c('white','#ffffcc','#ffeda0','#fed976','#feb24c','#fd8d3c','#fc4e2a','#e31a1c','#bd0026','#800026'), raster_breaks = c(0,500,1000,1500,2000,2500,3000,3500,4000,5000), legend_pos = "none", scale_bar = TRUE, north_arrow_position = "tr", north_arrow = TRUE)


plot_grid(PC_ras1, PC_ras3)
#> Scale on map varies by more than 10%, scale bar may be inaccurate
#> Scale on map varies by more than 10%, scale bar may be inaccurate

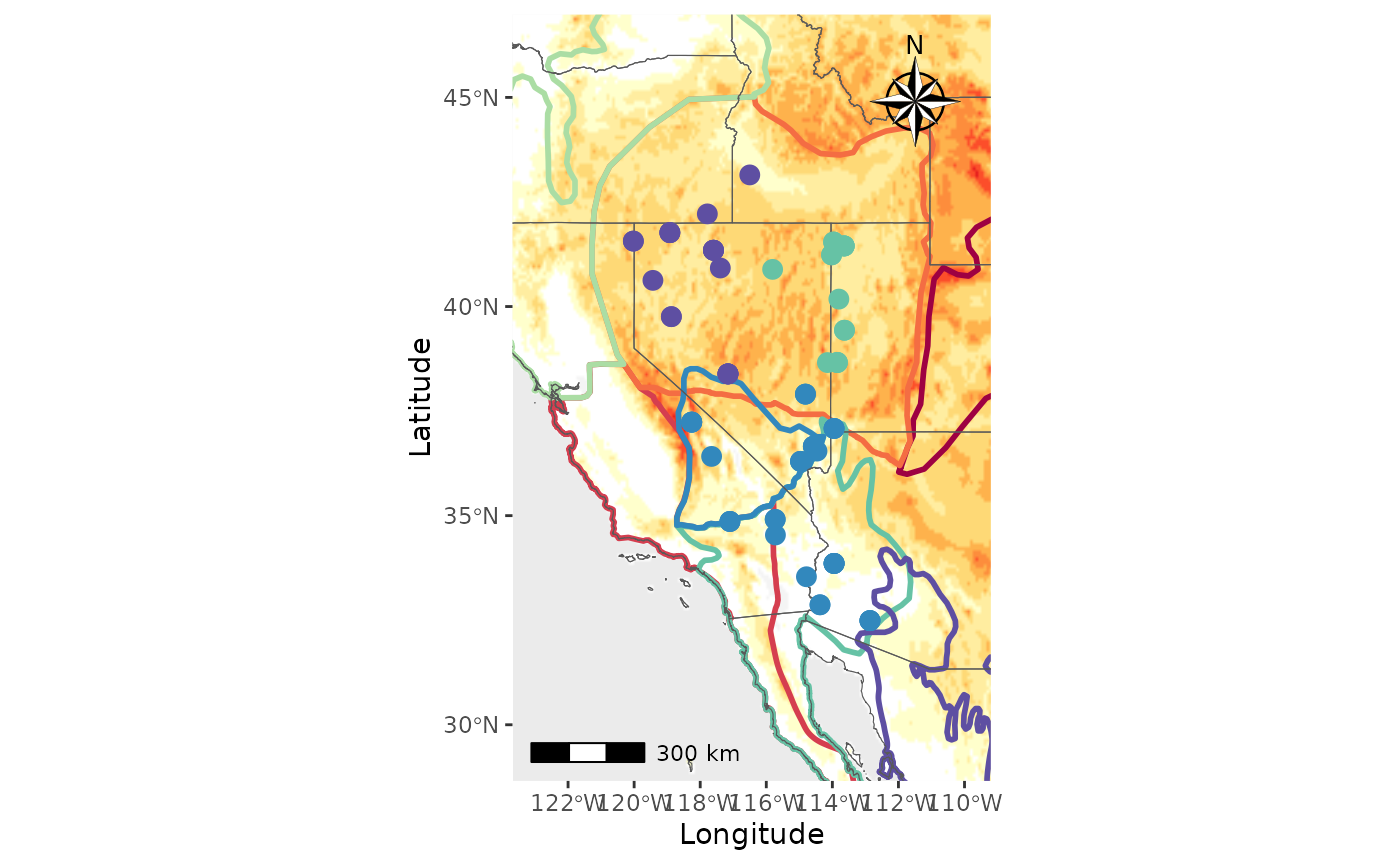

Now, we will make a map with shapefiles and a raster. Notice that the shapefile is on top of the raster and that the raster_plot_position argument does not matter. This is because PopGenHelpR uses the shapefile_plot_position arugment to determine the placement of these layers when both a shapefile and raster are provided.


PC_ras_shp <- Plot_coordinates(Pop_dat, Longitude_col = 3, Latitude_col = 4, group = Pop_dat$Population, group_col = c('#66c2a5','#3288bd','#5e4fa2'), country_code = c("usa", "mex", "can"), shapefile = shapefiles, shapefile_plot_position = 1, raster = raster, raster_plot_position = 2, interpolate_raster = TRUE, Lat_buffer = 3, Long_buffer = 3, discrete_raster = TRUE, shapefile_outline_col = c('#9e0142','#d53e4f','#f46d43','#fdae61','#abdda4','#66c2a5','#3288bd','#5e4fa2'),   raster_col = c('white','#ffffcc','#ffeda0','#fed976','#feb24c','#fd8d3c','#fc4e2a','#e31a1c','#bd0026','#800026'), raster_breaks = c(0,500,1000,1500,2000,2500,3000,3500,4000,5000), legend_pos = "none", scale_bar = TRUE, north_arrow_position = "tr", north_arrow = TRUE)

PC_ras_shp
#> Scale on map varies by more than 10%, scale bar may be inaccurate

Changing the north arrow.

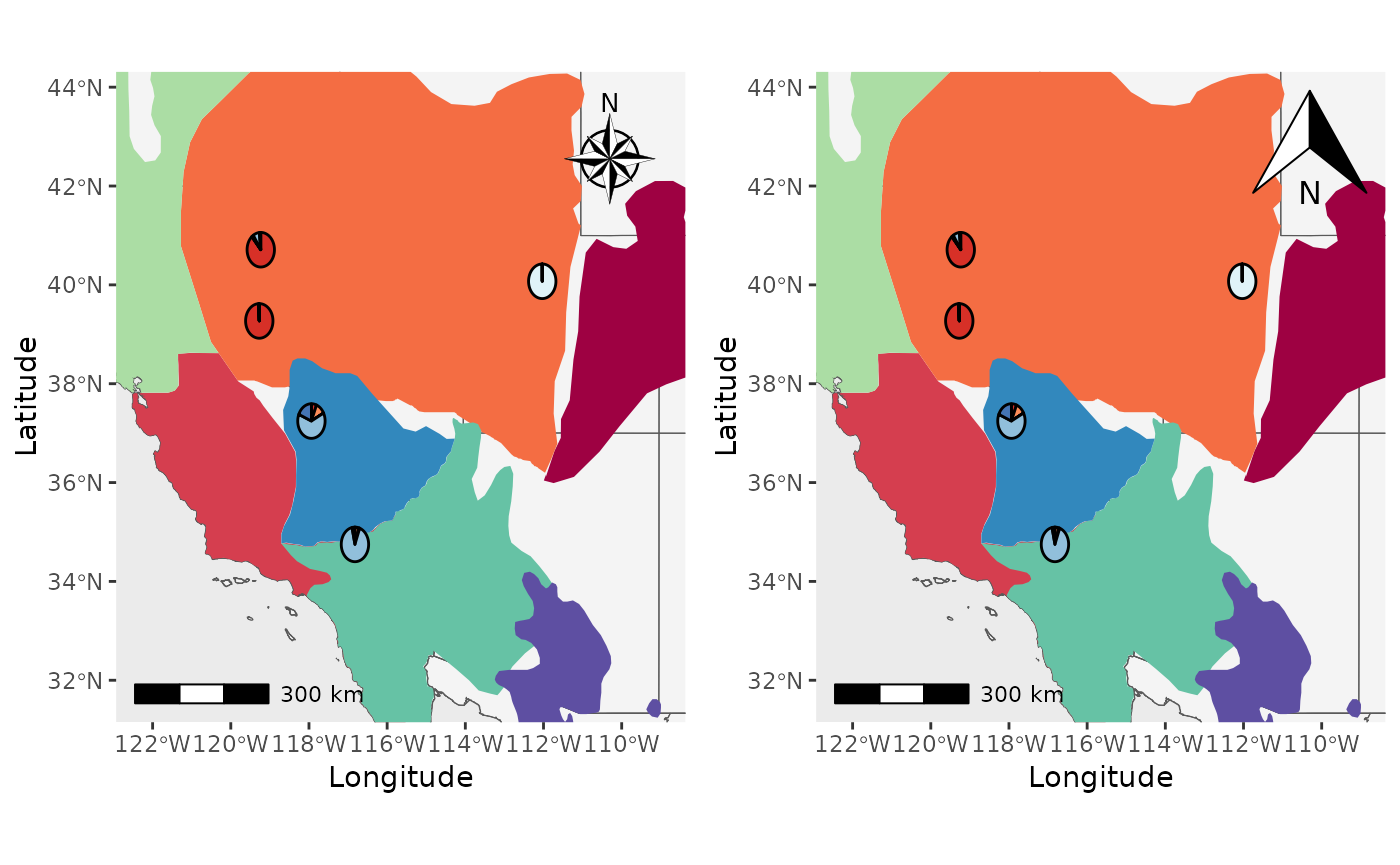

Finally, we will change the north arrow style using the north_arrow_style argument. By default, it is north_arrow_style = ggspatial::north_arrow_nautical(). Let’s change it to north_arrow_style =north_arrow_orienteering() and compare the two.

Shap2_piemap_arrow <- Piechart_map(anc.mat = Qmat, pops = Pops, K = 5, col = c('#d73027', '#fc8d59', '#e0f3f8', '#91bfdb', '#4575b4'), plot.type = "all", Lat_buffer = 3, Long_buffer = 3, country_code = c("usa", "can", "mex"), shapefile = shapefiles, shapefile_col = c('#9e0142','#d53e4f','#f46d43','#fdae61','#abdda4','#66c2a5','#3288bd','#5e4fa2'), shapefile_plot_position = 2,north_arrow = T, scale_bar = T, north_arrow_position = "tr",  north_arrow_style = ggspatial::north_arrow_nautical())

Shap2_piemap_arrow2 <- Piechart_map(anc.mat = Qmat, pops = Pops, K = 5, col = c('#d73027', '#fc8d59', '#e0f3f8', '#91bfdb', '#4575b4'), plot.type = "all", Lat_buffer = 3, Long_buffer = 3, country_code = c("usa", "can", "mex"), shapefile = shapefiles, shapefile_col = c('#9e0142','#d53e4f','#f46d43','#fdae61','#abdda4','#66c2a5','#3288bd','#5e4fa2'), shapefile_plot_position = 2,north_arrow = T, scale_bar = T, north_arrow_position = "tr",  north_arrow_style = ggspatial::north_arrow_orienteering())


plot_grid(Shap2_piemap_arrow$Population_piemap, Shap2_piemap_arrow2$Population_piemap, nrow = 1)
#> Scale on map varies by more than 10%, scale bar may be inaccurate
#> Scale on map varies by more than 10%, scale bar may be inaccurate
